  • Straight Plug BNC Coax Connector
  • Fits Belden 1855A and 1865A Cables
  • 75 Ohms Impedance
  • Less Than -36 dB to 1 GHz Return Loss
  • Crimp Termination
  • Beryllium Copper Contact Material
  • Gold Contact Plating
  • Nickel Finish

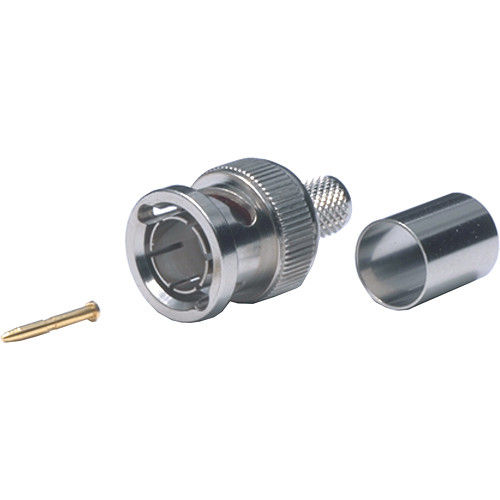

2065-11-9 BNC connector

SKU: 2065-11-9
68.400₫Giá
    • Connector TypeBNC coaxial
      Body TypeStraight plug
      Contact MaterialBeryllium copper
      TerminationCrimp
      Contact PlatingGold
      Impedance75 Ohms
      Voltage Rating500 VRMS
      Return LossLess Than:
      -36 dB to 1 GHz
      -25 dB to 2 GHz
      -23 dB to 3 GHz
      -20 dB to 5 GHz
      Contact ResistanceCenter Contact: 0.0014 Ohms
      Outer Contact: 0.0020 Ohms
      Insulation Resistance5000 MOhms
      Durability500 cycles minimum center contact
      Center Contact Retention6 lb (2.7 kg) minimum
      Coupling100 lb (45 kg) minimum
      ForceTo Engage/Disengage:
      Torque: 2.5 in-lb maximum
      Longitudinal Force: 3 lb (1.4 kg) maximum
      Interface DimensionMIL-C-39012 except 75 Ohms
      Thermal Shock-85 to 329°F (-65 to 165°C)
      Moisture Resistance0 to 95%: MIL-STD-202 Method 106
      CorrosionMIL-STD-202 Method 101 Test Condition B (Salt Spray)
      FlammabilityUL 94-VO Rated (Center Conductor Insulator)
      VibrationMIL-STD-202 Method 204 Test Condition B
      Solvent ResistanceMIL-STD-202 Method 215
      FinishBody/Bayonet: Nickel
      Center Conductor: 50 millionths inch gold plating over copper plate
      Packaging Info
      Package Weight0.03 lb
      Box Dimensions (LxWxH)4.0 x 1.3 x 0.2"
